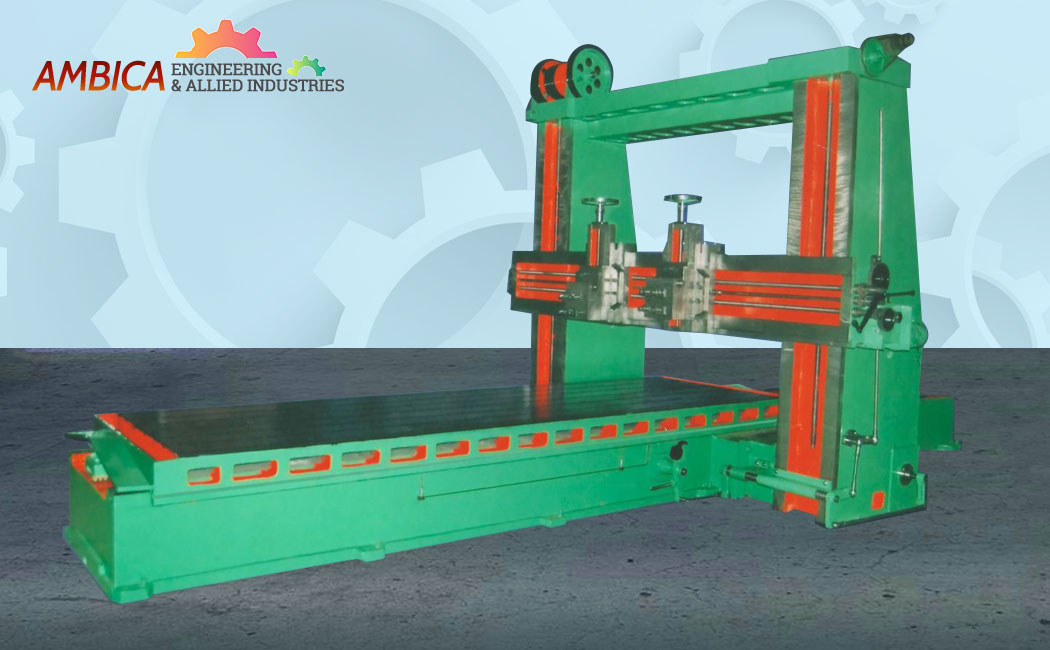

Planner Machine

We offer high quality Planner Machines, which are used in rolling mills, cement plants, paper mills, sugar mills etc. Our Heavy Duty Planner Machines are designed keeping user friendliness as top priority.

Design : It is a very double rigid column and body bore system planner fitted with ball bearings.

The Bed : The bed is of deep box section type and is tied together at frequent intervals by double walled bridge pieces extending to the bottom of the bed. The Table : It is of box section type and is streamlined with hand scraped 'V' way to bear heavy load. It is heavily ribbed and the Rack provided in it is accurately machines and milling cut.

The Bearings : The main bearings for the Gearings are cast solid with the Bed. Thea Gears Teeth are hobbing machine cut except two gears are helical. Gun metal bearings have been provided for all the shaft and loose pulleys. Taper roller bearings can also be provided instead of Gun metal bushes.

The Cross Rail : This is of Box section type with large surface. It is suitable for both hand and mechanical drive.

Tool Posts : These are manufactured out of close grain alloy castings and steel to stand heavy cut. These can be driven both manually and mechanically.

The Uprights : The uprights are of rigid box section type. keysed firmly, bolted on to bed and are capable of absorbing the heaviest shocks without vibration, Extra pins are provided to re-fit the machine accurately after once it is dismantled.

The Drive : The machine is arranged for direct individual as well as two belt drive.

Accessories : Automatic lifting arrangements of cross rail.

Technical Specification
